Product Description:
Dry Powder Roll Press Pelletizer Compound Fertilizer Manufacture
Equipment of 150mm Granules
The Double Roller Press Granulator is a highly efficient machine
that features advanced technology and a compact design. With its
practical and novel design, it offers low energy consumption and
can form a small production line when paired with the appropriate
equipment. This granulator is capable of continuous and mechanized
production, making it ideal for use in various industries.
What sets the Double Roller Press Granulator apart is its ability
to produce high-quality products without the need for drying. By
utilizing a healthy formula and operating at room temperature, this
machine produces compound fertilizer that meets all technical
requirements. Its versatility allows for the production of special
compound fertilizers with high, medium, and low concentrations,
making it suitable for a variety of crops.
Features:
The formation of granules occurs simultaneously, eliminating the
need for binder addition.
Granulation can be achieved at room temperature without the need
for a drying process.
By adjusting the pressure and size of the double rollers, the
particle size and hardness can be altered.
It has a small footprint, low energy consumption, and provides
excellent anti-corrosion properties.
More information about
fertilizer granulation equipment!
Technical Parameters:
| Product Name |
Double Roller Fertilizer Granulator |
|---|
| Other Name | Fertilizer Granulator |
| Producing Capacity | 1-2T/H |
| Roller Size | 300x150mm |
| Installation | Guide |
| Materials | Q235 Or SS |
| Roller | 300x150mm, Alloy Steel |
| Final Granule Size | Diameter 3-8mm |
| Working Process | Press And Squeeze |
| Capacity | 1-2t/h |
| Roller Diameter | 200mm |
| Key Features | Compound Fertilizer Granulator, Double Roller Granulator, Roller
Press Extrusion Granulator |
Applications:

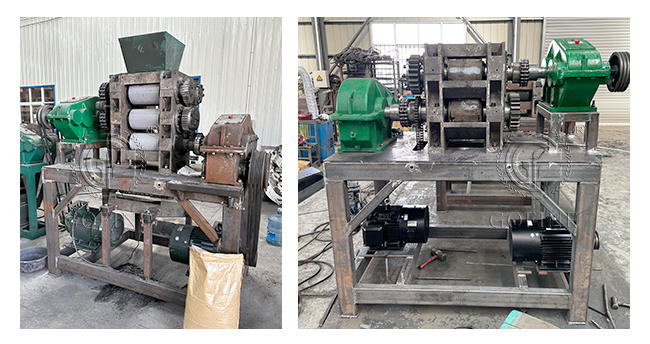

The Mechanism behind the Double Roller Press Granulator
The Double Roller Press Granulator operates on an extrusion model,
where the process is driven by a belt and pulley mechanism powered
by electric motors. The driving shaft passes through a reducer, and
works in synchronization with the gear and opposite driven shaft.
The material is fed into the machine through a hopper, and
undergoes roll extrusion to form round, compact granules. These
granules are then separated by a breaking screen, resulting in
evenly shaped oval granules.
Three-layer double roller press granulator
Using multi-stage extrusion and molding, better granulation effects
can be achieved, and particle size and density control are more
precise.
More
information about fertilizer granulation
equipment!
Packing and Shipping:
Double Roller Fertilizer Granulator
Packaging and Shipping
The Double Roller Fertilizer Granulator is packaged and shipped in
a sturdy wooden case to ensure safe and secure delivery to our
customers.
Each granulator is carefully inspected and tested before packaging
to guarantee its quality and performance.
Our standard shipping method is by sea, but we can also arrange for
air or land transportation upon request.
For international orders, we provide all necessary documents and
customs clearance to facilitate smooth delivery and avoid any
delays.
Customers can choose from a variety of shipping options to suit
their needs and budget.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is Gofine. - Q: What is the model number of this product?
A: The model number of this product is DZJ-I-1.0. - Q: Where is this product manufactured?
A: This product is manufactured in China. - Q: Is this product certified?
A: Yes, this product is CE certified. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
