Industrial Wood Sawdust Coal Rotary Kiln Dryers 8-15t/H

Ask Lasest Price
Brand Name :	Gofine
Model Number :	2.0×20
Certification :	CE
Price :	Negitionable
Payment Terms :	L/C, Western Union, T/T, MoneyGram
Supply Ability :	15Sets/Month
Delivery Time :	1-3Sets/15days

Add to Cart

Product Details
Company Profile

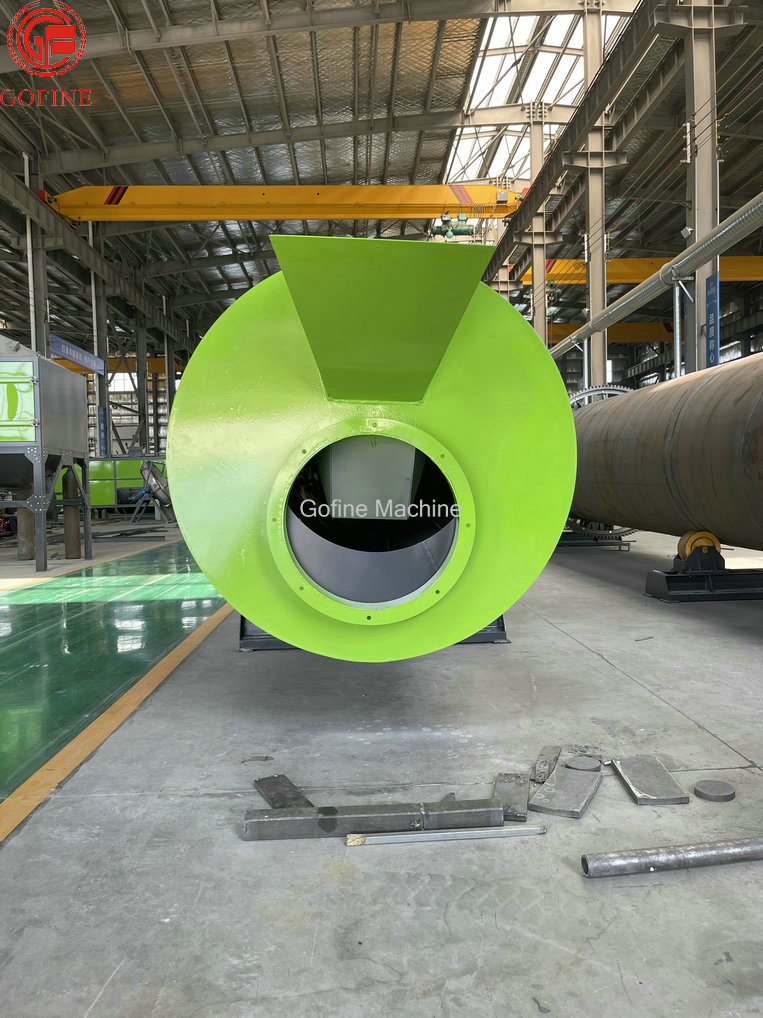

Industrial Wood Sawdust Coal Rotary Kiln Dryers 8-15t/H

Industrial Wood Sawdust Coal Rotary Kiln Dryers 8-15t/H

Introduction

Drum Dryer, both steamed killing effect of high-efficiency continuous fixation machine. A monolithic structure, equipped with wheels can be moved. The main structure is a long cylindrical metal drum, built with three sections of different angles of the spiral guide vane, can play import and export, turning the leaves of the role of the barrel is also equipped with an adjustment mechanism, by adjusting the angle of inclination to control the leaf time.
Mini-roller Drum Dryer according to different fuels, firewood and coal sub-type electric two.

The main structure of this series of dryers is as shown in the diagram, and the rotary cylinder is flanged or directly welded. It is supported by the two-speed supporting wheel supporting device and drives the simplified rotation through the transmission gear. The cylinder is installed with an angle, and the material is in contact with the hot flue gas during the process of turning and moving forward in the rotating cylinder to achieve the purpose of drying. This machine is equipped with feeding and discharging devices.

Parameters

Item	Power (KW)	Inlet air temperature (^.C)	Working speed (r/min)	Capacity (t/h)
0.8×8	5.5	≥300	6	1-2
1.0×10	7.5	≥300	6	2-4
1.2×12	7.5	≥300	6	3-5
1.5×15	11	≥300	6	4-6
1.6×16	15	≥300	6	6-8
1.8×18	22	≥300	5.8	7-12
2.0×20	37	≥300	5.5	8-15
2.2×22	37	≥300	5.5	8-16
2.4×24	45	≥300	5.2	14-18

Details
