6-10T/H Compost Fertilizer Production Trommel Vibrating Screen
Introduction
Trommel Vibrating Screen Adopting the principle of rolling
conveying, the friction coefficient is small, the wear is light and
the screen hole is not easy to be blocked.
Safe and reliable operation, high transmission efficiency, with a
small power, low energy consumption.
Our Trommel Vibrating Screen can solve the issues such as blockage
of the screening machine, low efficiency, wet materials, and high
energy consumption. Cage trommel screening machine, because of its
unique structural characteristics, completely and effectively
solves the shortcomings of other types of screening equipment, and
is the first choice for fertilizer production.
Self-cleaning cage trommel screening machine rotates reasonably the
central separation drum of the equipment through the gearbox type
deceleration system. During operation, the material enters the
cylinder net from the upper end of the central separation cylinder.
During the rotation of the separation cylinder, the fine material
is separated from the top to the bottom through the screen interval
composed of annular flat steel, and the coarse material is
separated from the lower end of the separation cylinder discharged
into the pulverizer.
Application of Trommel Vibrating Screen
Building Material Shops, Manufacturing Plant, Food & Beverage
Factory, Farms, Home Use, Food Shop, Printing Shops, Construction
works , Energy & Mining, Food & Beverage Shops, Other
Parameters of Trommel Vibrating Screen
| model | Power kw | Working speed rpm | Capacity T/H |
| GS1X3 | 3 | 21 | 2-3 |
| GS1.2X4 | 4 | 18 | 3-5 |
| GS1.5X6 | 5.5 | 16 | 6-10 |
| GS1.8X7 | 11 | 13 | 12-15 |
| GS2.0X8 | 15 | 12 | 15-20 |

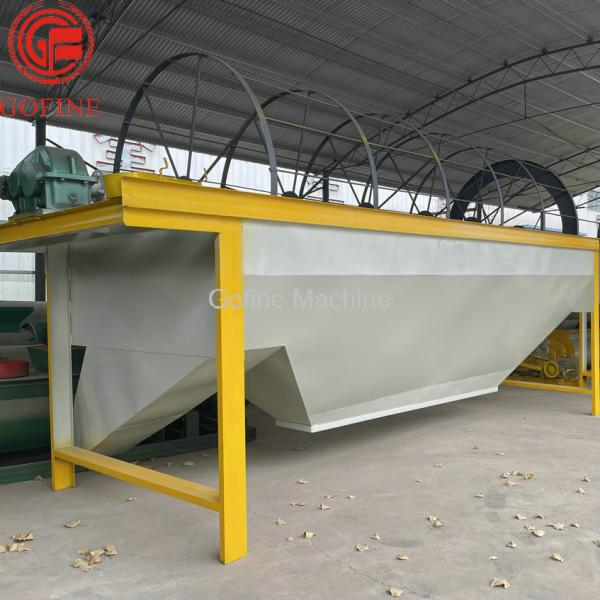

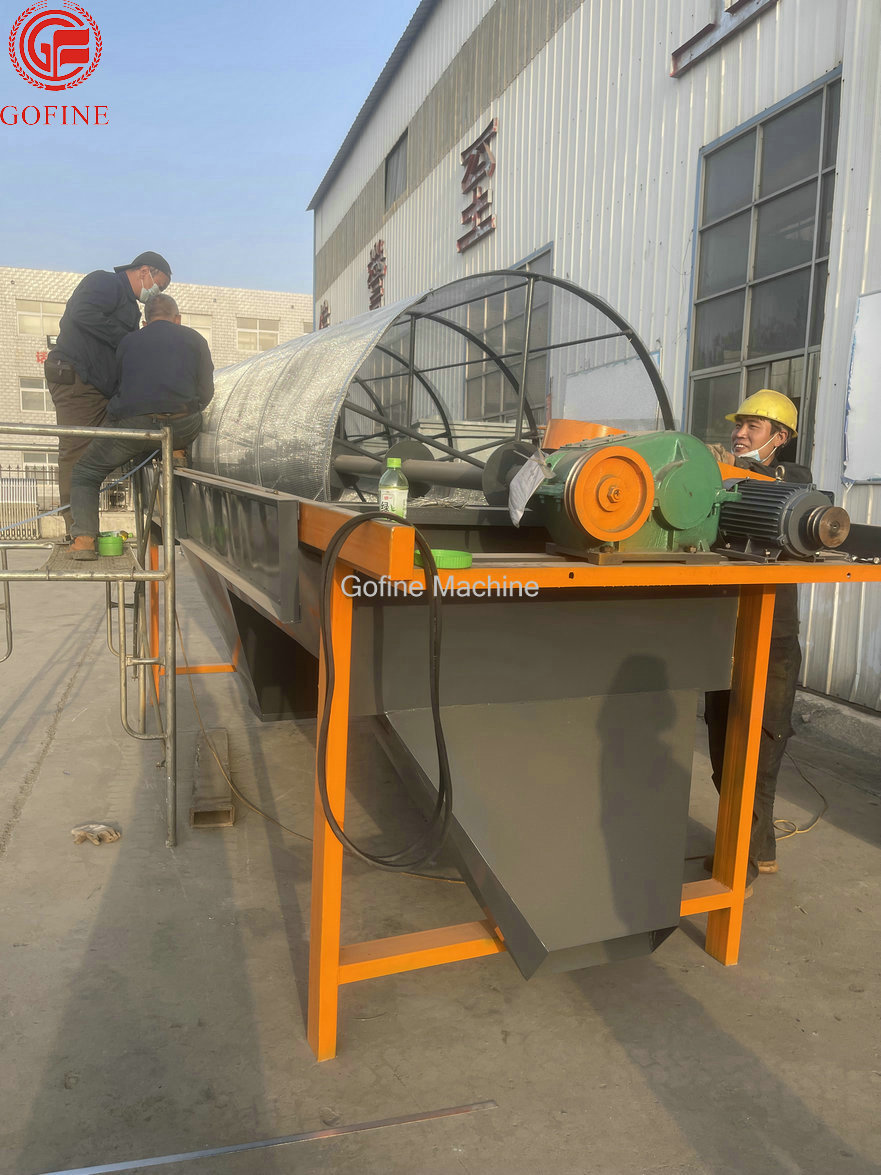

Pictures of Trommel Vibrating Screen
