Sand Portable Compact Trommel Screener Fertilizer Rotary Trommel
Screen
Introduction
the main structure of Compact Trommel Screener is cylindrical drum,
which is inclined and installed on the frame. The geared motor is
connected to the drum device through a coupling, the driving drum
will rotate around the axis direction. When the materials enters
the drum device, due to the tilt and rotation of the drum device,
the materials on the screen surface is overturned and rolled so
that the fine material is discharged through the discharge port at
the bottom of the back end of the drum of trommel screen, and the
coarse material is discharged through the discharge port at the
tail of the drum discharge.
Self-cleaning cage Compact Trommel Screener rotates reasonably the
central separation drum of the equipment through the gearbox type
deceleration system. During operation, the material enters the
cylinder net from the upper end of the central separation cylinder.
During the rotation of the separation cylinder, the fine material
is separated from the top to the bottom through the screen interval
composed of annular flat steel, and the coarse material is
separated from the lower end of the separation cylinder discharged
into the pulverizer.
During the separation process, through the relative movement of the
screen cleaning mechanism and the screen body, the screen body is
continuously "combed" by the screen cleaning mechanism, so that the
screen body is always kept clean during the whole working process.
, the screening efficiency will not be affected by the clogging of
the screen holes. It is custom made according to different
materials;
Parameters of Compact Trommel Screener
| model | Power kw | Working speed rpm | Capacity T/H |
| GS1X3 | 3 | 21 | 2-3 |
| GS1.2X4 | 4 | 18 | 3-5 |
| GS1.5X6 | 5.5 | 16 | 6-10 |
| GS1.8X7 | 11 | 13 | 12-15 |
| GS2.0X8 | 15 | 12 | 15-20 |

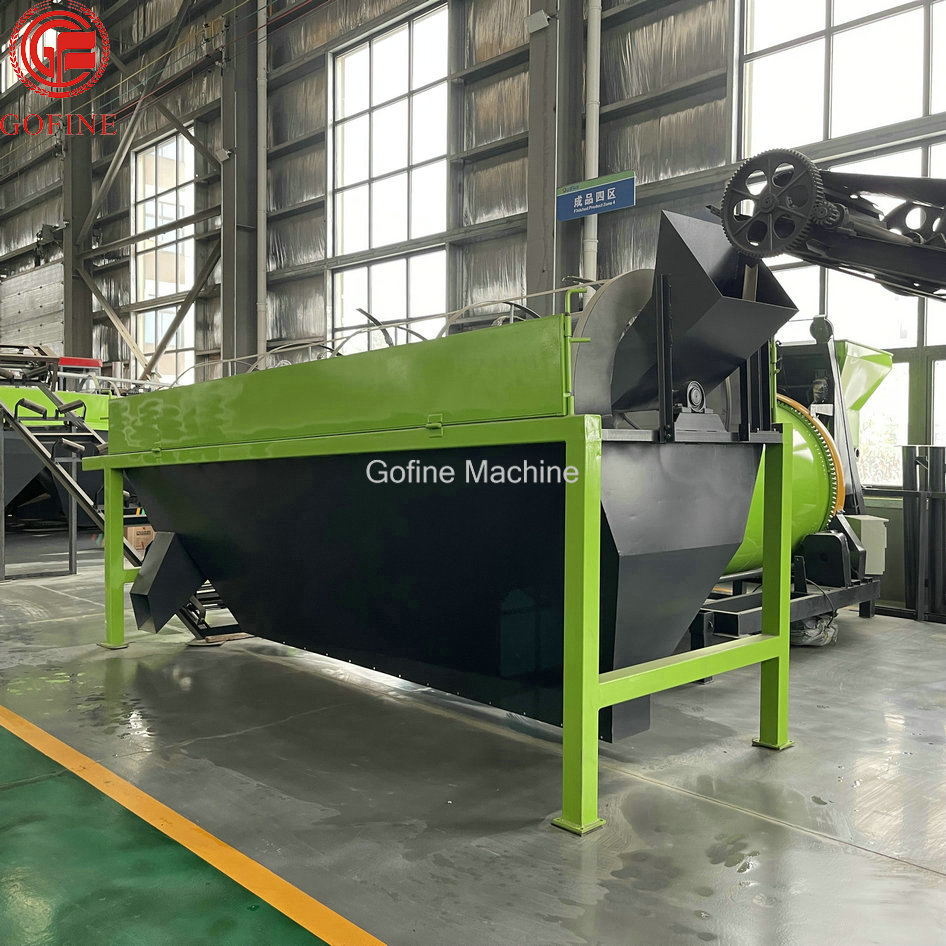

Pictures of Compact Trommel Screener
