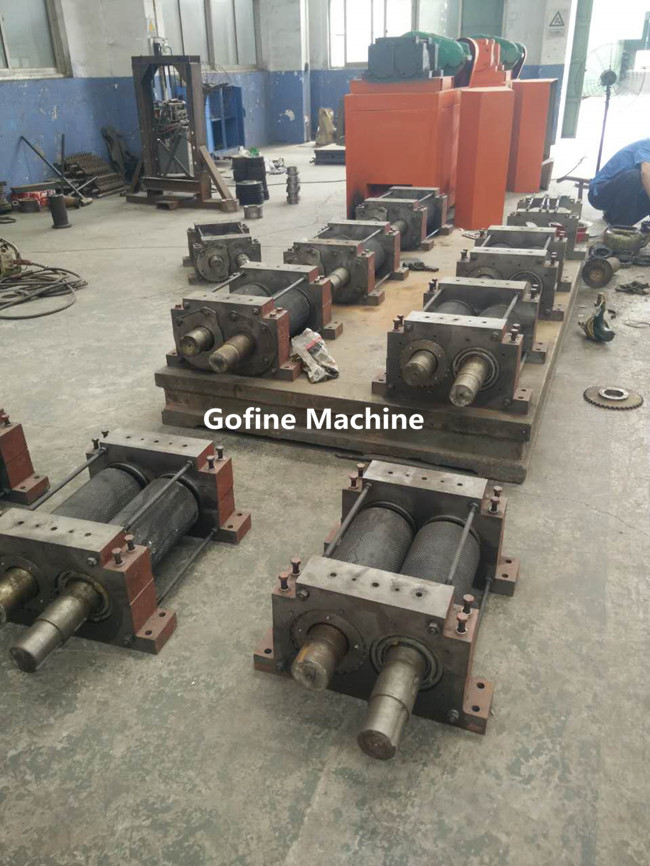

Counter-Roller Granulator For Compound Fertilizer Manufacturing
Plant
Counter-Roller Granulator For Compound Fertilizer Manufacturing
Plant is the key equipment of compound fertilizer granulation and
has the characteristics of advanced technology, reasonable design,
compact structure, novelty and utility and low energy consumption;
it is equipped with corresponding equipment, which can form a small
production line, thus forming the continuous production of certain
production capacity and mechanization production. The machine
adopts the eugenic formula without drying and produce fertilizer by
normal temperature; the product once rolled and formed, meeting the
requirements of technical specifications of compound fertilizer.
Therefore, it is the upgraded machine for the production of high,
medium and low concentration special compound fertilizer and the
renewable energy consumption of the compound fertilizer industry.
The complete equipment is less investment, quicker and good
economic returns. It is also compact, scientific and rational, and
advanced technology. The whole equipment is saving energy, no waste
discharge, stable operation, reliable operation and easy
maintenance. Wide adaptability of raw materials includes
fertilizer, pharmaceuticals, chemicals, feed and other raw
materials. The ratio of forming particles is high. It can produce a
variety of concentrations of various types (including organic
fertilizer, inorganic fertilizer, fertilizer, and magnetic
fertilizer) fertilizer, in particular, rare earth, ammonium
bicarbonate series of fertilizer granulation. The production line
fills the gap, leading in China.
The raw materials have wide adaptability and high granulation rate
It can produce compound fertilizers of various comcentra ions and
types
Product Details
- Ball forming rete can reach 85%.no drying
- Double roll pressure determines particle strength
- Roll speed is adjusted by changing the belt pulley transmission
ratio
- Roll skin adopts new wear-resistant material
parameter
| Model | power(kw) | Particle diameter(mm) | Roller size(mm) | Overall dimensions(mm) |
| JZ-1T | diameters4.5mm : 11 diameter > 4.5mm : 15 | 3- 10 | 150*220 | 1450*800*1450 |
| JZ-1.5T | diameters4.5mm : 18.5 diameter > 4.5mm : 22 | 3- 10 | 150*300 | 1450*850*1500 |
| JZ-2T | diameters4.5mm : 22 diameter > 4.5mm : 30 | 3- 10 | 185*300 | 1630*850*1650 |
| JZ-2.5T | diameters4.5mm: 37 diameter > 4.5mm : 45 | 3- 10 | 300*300 | 1850*1100*2050 |
