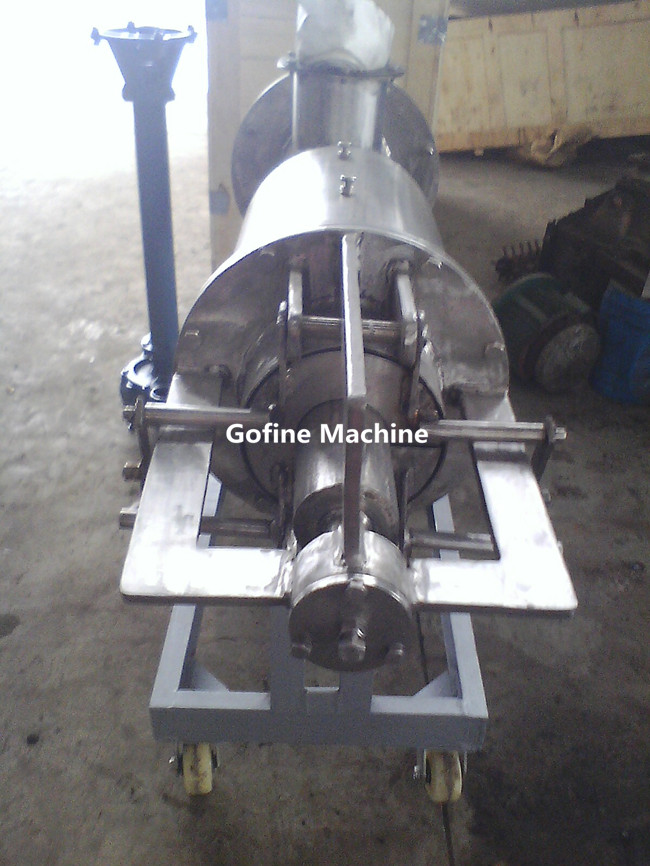

Automatic Screw Extrusion Cow Dung Manure Dehydration And Drying
Machine
Animal dung dewatering machine is also called dry and wet separator
or solid and liquid separator. Except being the animal dung
processing equipment, it can also be used to separate slag and
liquid for high concentration organic wastewater, such as vinasse,
dregs of decoction, starchy residue, sauce residue, eat hutch
garbage, slaughterhouse, etc. This machine is small in size, easy
to operate, convenient to install and maintain, most important is
fast return on investment.
working principle
It separates the moisture and the animal manure by screw extruding
extrusion technology.
First, When the cutting feed pump pushs the animal manure to the
screw dewatering machine through the pipeline, the dewatering
machine start to work.
The screw gradually pushes the animal manure to the front of the
body. And at the same time, increases the pressure, forcing the
moisture in the raw material to squeeze out from Mesh screen,
flowing out of the drain pipe.
In order to grasp the discharging speed and moisture , the
adjusting device in front of the main machine can be adjusted to
achieve your requiremnet.
Operation:
The machine receives the material to be separated and conveys it
using the screw conveyor inside the separator casing. The liquid
phase is separated through the mesh of the cylindrical screen which
encloses the screw conveyor. Along its path toward the exit, the
material gradually separates progressively the less linked liquid
and then the more strongly linked liquid until a plug of almost dry
material has formed before the outlet. The plug is continuously
expelled through the outlet diaphragm.The machine will
automatically find its balance of squeezing force depending on the
material. Consequently, it can be used for a wide range of
materials without the need for any manual adjustments
Product Details
- Combined design structure
- Low power consumption ,low investment, high efficiency
- Very easy to operate and easy to maintain
- screw and screen are made of heat to maintain treated stainless
steel durable
parameter
| host | pump | Vibration machine |
| Power(kw) | 4-5.5 | 3-4 | 0.18 |
| Speed(r/min) | 33 | 1450 | 1450 |
| Voltage(v) | 380 | 380 | 380 |
