Fermentation Equipment-Organic Fertilizer Kitchen Waste

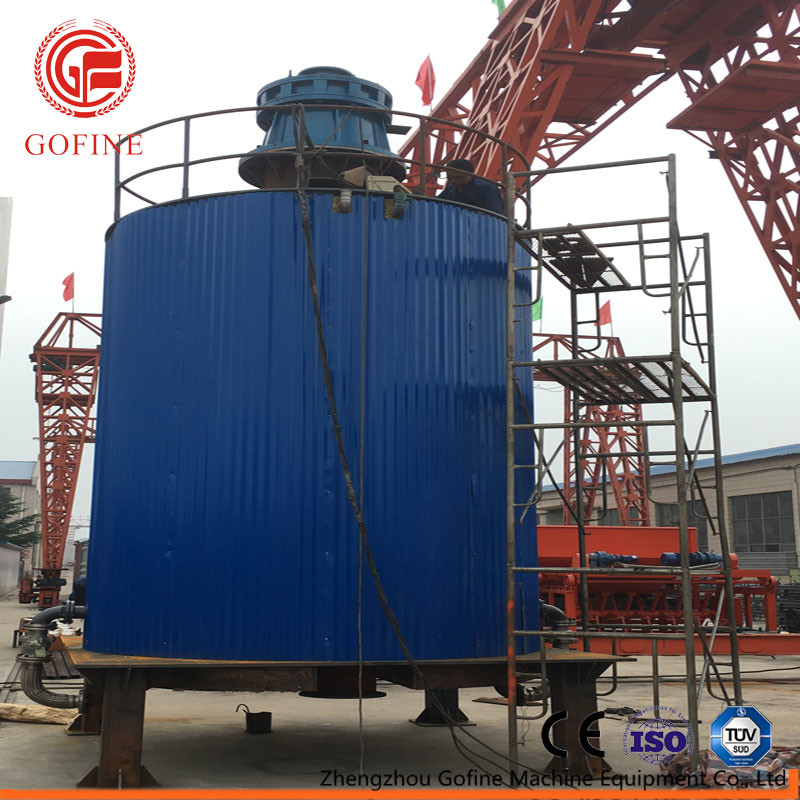

Fermentation Equipment
The fermentation equipment can be used to treat pig manure, chicken
manure, cattle
Organic waste such as manure, sheep manure, mushroom residue,
Chinese medicine residue, crop straw Material, 10 hours can
complete the harmless treatment process, occupying less land(The
fermentation machine only covers 10-30 square meters), no pollution
(closed Fermentation), completely kill the eggs (adjustable to
80-110 ° C High temperature), is the majority of aquaculture
enterprises, recycling agriculture, ecological agriculture,the best
choice for waste resource utilization. According to customer needs
Custom-made 5-150m different capacity, different forms (horizontal,
standFermentation tank. During fermentation, aeration, temperature
control, agitation, removal
Stinky automatic control. When the material is discharged, the
pneumatic discharge device is started to discharge
quickly.automatic control throughout, no need for worker operation.
application compost Tower
- Livestock and poultry manure in farms
- Sewage treatment olant sludge
- Organic waste from kitchen waste
parameter
| Model | B105 |
| Total capacity (m2) | 105 |
| hopper capacity (m2) | 1.5 |
| Entity weight (t) | 33 |
| Power AC380V(HZ) | 50 |
| Top blower (kw) | 4 |
| Below blower (kw) | 2*12.5 |
| Electric heating (selection) (kw) | 7.5 |
| Hydraulic motor (kw) | 11 |
| Feeder motor (kw) | 0.37 |
| Hopper Lifting machine (kw) | 4 |
| Deodorizing Induced Draft Fan/Water pump(kw) | 4/0.55 |
| Installed power (kw) | 56.42 |
| Installed power (No heating) (kw) | 48.92 |
| 24-hour average power (kw) | 22 |
| Length, width and height | 7.0*8.0*9.4 |
| Pot diameter (m) | 5.5 |
| Daily working ability |
| Chicken manure, pig manure (moisture content: 55-65%} | Cattle dung, kithen garbage sludge(moisture content: 60-70%) |
| 10-14 | 8-12
|
Work theory
Waste composting reactor tower is composed of cylindrical
containers, screw mixing blades and transmission parts. The
cylinder structure ensures the small resistance movement of the
material to be mixed in the tank. The positive and negative
rotating screw is mounted on the same horizontal axis to form a
low-power and efficient mixing environment. The ribbon-shaped
leaves are generally made of double or three. The outer spiral of
the material from both sides to the central collection, the inner
layer of the material from the center to the two sides of the
transport, the material can flow in the formation of more eddy
current, speed up the mixing speed and fermented fully.
