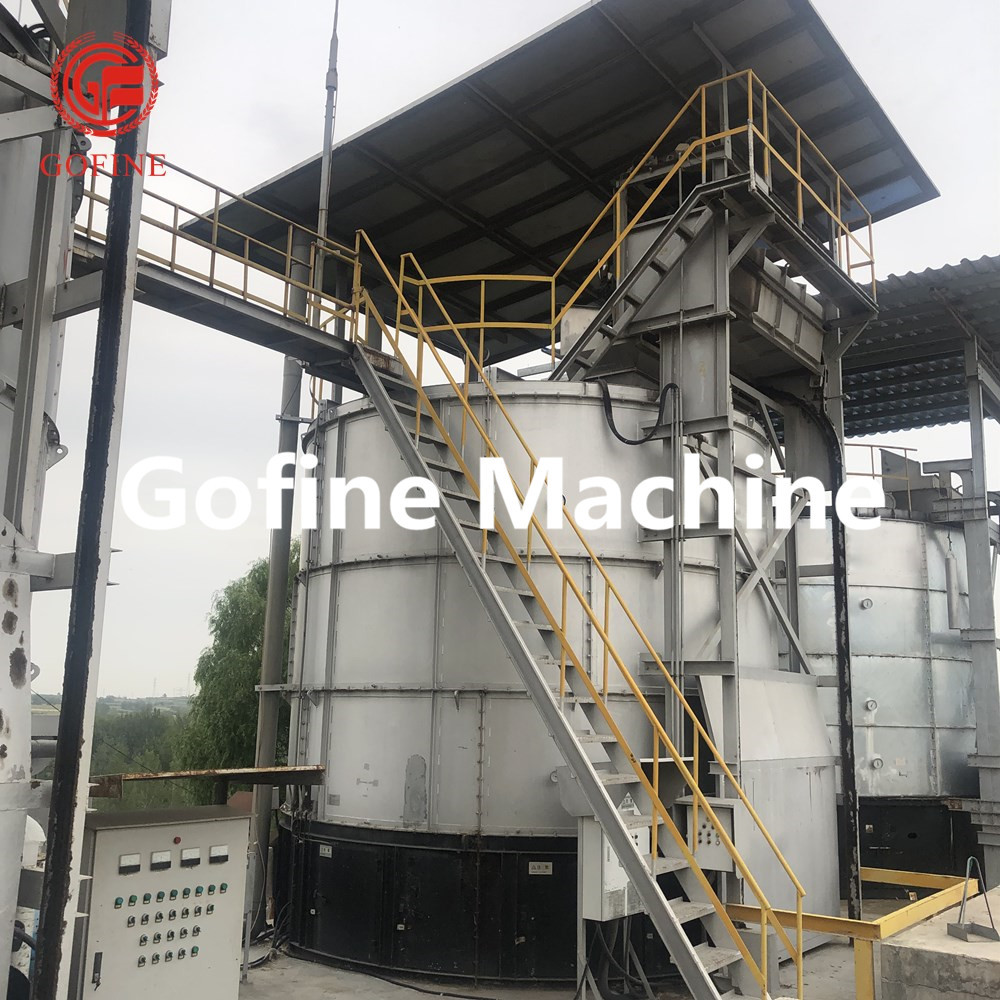

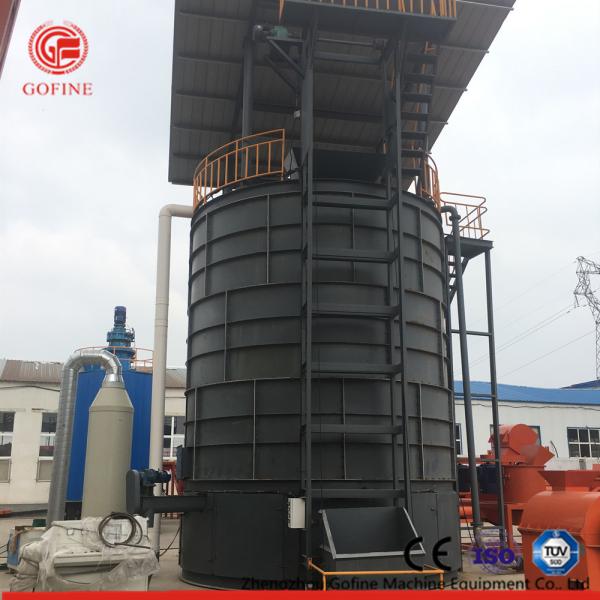

Environment Big Cow Manure Organic Fertilizer Fermentation Tank
Organic waste such as manure, sheep manure, mushroom residue,
Chinese medicine residue, crop straw Material,24 hours can complete
the harmless treatment process, occupying less land(The
fermentation machine only covers 10-30 square meters), no pollution
(closed Fermentation), completely kill the eggs (adjustable to
80-110 degrees High temperature), is the majority of aquaculture
enterprises, recycling agriculture, ecological agriculture,the best
choice for waste resource utilization.
Features:
1, High-temperature aerobic fermentation, bio-bacteria technology
using high-temperature, low energy consumption, low operating cost;
2, Equipment, small footprint, high degree of automation, a
manipulation to complete the fermentation process;
3, Biological deodorization equipment to achieve through a gas
discharge, no secondary pollution;
4, The device body made of stainless special materials to reduce
corrosion and long life;
5, The main design of thermal insulation, auxiliary heating
equipment to ensure the normal operation of a low temperature
environment;
6, The treated sludge, kitchen waste, animal manure for organic
fertilizer processing, utilization of resources.
application compost Tower
- Livestock and poultry manure in farms
- Dead poultry body
- Sewage treatment olant sludge
- Organic waste from kitchen waste
Exhaust gas manage technological Process:
1. water spraying tower
2. Photon catalytic oxidation device
3. Low temperature plasma deodorization device
4. Induced draft fan
5. Clean gas chimney
parameter
| Model | B105 |
| Total capacity (m2) | 105 |
| hopper capacity (m2) | 1.5 |
| Entity weight (t) | 33 |
| Power AC380V(HZ) | 50 |
| Top blower (kw) | 4 |
| Below blower (kw) | 2*12.5 |
| Electric heating (selection) (kw) | 7.5 |
| Hydraulic motor (kw) | 11 |
| Feeder motor (kw) | 0.37 |
| Hopper Lifting machine (kw) | 4 |
| Deodorizing Induced Draft Fan/Water pump(kw) | 4/0.55 |
| Installed power (kw) | 56.42 |
| Installed power (No heating) (kw) | 48.92 |
| 24-hour average power (kw) | 22 |
| Length, width and height | 7.0*8.0*9.4 |
| Pot diameter (m) | 5.5 |
| Daily working ability |
| Chicken manure, pig manure (moisture content: 55-65%} | Cattle dung, kithen garbage sludge(moisture content: 60-70%) |
| 10-14 | 8-12
|
