water soluble fertilizer mixing equipment Stainless steel mixer
Chemical powder paste mixer
Introduction
1. Horizontal mixer is a high-efficiency equipment that is
professionally aimed at the homogenization and stirring needs of
various particles, powders and tablets;
2. The material of horizontal mixer is divided into carbon steel,
201, SUS304, SUS316L, and the material contact surface is stainless
steel.
And the whole machine is made of stainless steel;
3. The mixing capacity model has 50-20000L for customers to choose;
4. The inside of the barrel body is polished and smooth, easy to
clean, the blades are stirred without dead angle, and each batch
can be mixed evenly within 5-10 minutes;
5. The mixer adopts double "S" shaped blades, and the mixing is
fast and uniform;
6. The discharge port has guillotine type, wall type, valve,
manual, automatic (pneumatic, electric) waterproof, dustproof and
non-leakage;
7. Optional liquid atomizing device: atomize liquid materials of
different viscosity to make the mixing of liquid materials more
uniform (spraying)
PRODUCTION PROCESS

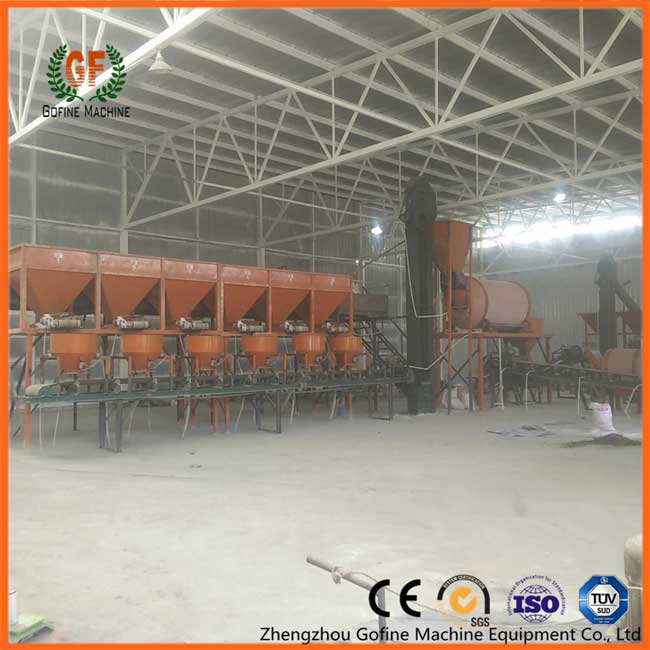

Ingredients process
Manually pour 4 or more than 4 kinds of raw materials into the
designated low-level raw material bin ------ lifted to the
high-level batching storage bin by the automatic bucket feeder
-----4 kinds of materials are added in sequence according to the
equipped amount Proportioning hopper --- After the batching is
completed, the discharge door of the proportioning hopper opens and
unloads automatically --------The materials in the proportioning
hopper enter the mixer and are evenly mixed ----- The mixed
materials are mixed The pneumatic discharge door enters the
temporary storage silo of mixed materials --- the mixed materials
are lifted by the vacuum feeding machine to the material silo to be
packaged. If the material bin to be packaged is in a low material
level state, the next batching cycle is completed.
Packaging process
Wait for the packaged materials to enter the automatic quantitative
packaging scale to complete the set weight weighing (weighing and
manual bagging) ---------manually issue the cutting instruction to
complete the material filling -----After filling, the material
passes through the belt conveyor Transfer to the automatic sewing
machine station ------- manual assistance to guide automatic sewing
------ start the next packaging cycle.
materials suggested
Compounding materials: magnesium sulfate, calcium nitrate,
potassium nitrate, potassium phosphate, potassium sulfate,
potassium chloride, etc. For better use of the equipment, the raw
materials used are as fine crystal materials as possible.
Blending capacity: ≥5 tons/hour
Packing capacity: 5kg≥2 tons/hour, 10kg≥3.5 tons/hour
Measurement accuracy: ±0.5%
Power supply: 380V 50Hz
Air consumption: 15m3/min
