Product Description:

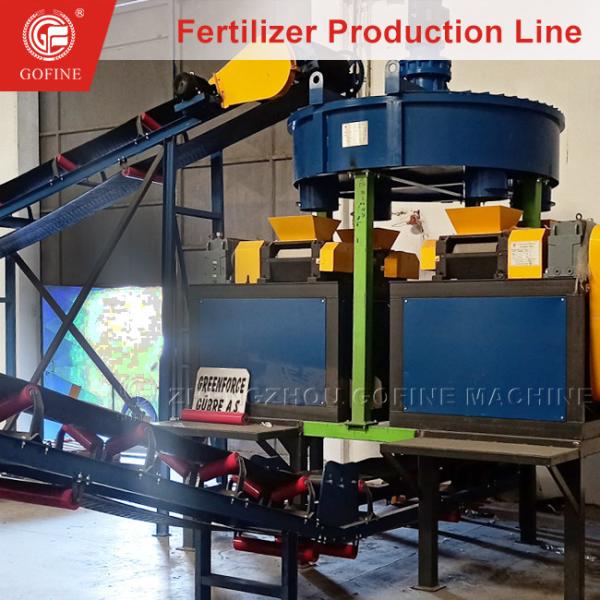

The double-roller extrusion granulation production line is a comprehensive set of automated dry granulation production equipment. Its main purpose is to manufacture granular materials with a particle size ranging from 2mm to 6mm. These materials include compound fertilizer, organic fertilizer, inorganic fertilizer, water-soluble fertilizer, chemical raw materials, cat litter, graphite, pigment, industrial salt, SSP, Dap, and more.
The entire production line comes equipped with an automated control system, making it user-friendly, reducing labor costs, and boosting production efficiency. It is well-suited for large-scale and enterprise production, catering to the diverse production requirements of various customers.

Features:

No drying or cooling is necessary after granulation in this process, leading to energy conservation.

Dry granulation results in high particle density without the need for adding any additives during the process.

This method does not require high moisture levels in the raw materials, making it suitable for granulating various types of powdery substances.

Unlike wet granulation that can cause raw materials to clump due to excess moisture, dry granulation eliminates this issue ensuring uniformity and quality of particles.

Technical Parameters:

Applications:

How to Produce High-Quality Cat Litter Granular?
To produce high-quality cat litter granules, the use of a double-roll extrusion granulation production line is an effective solution. The production line contains several key equipment to ensure the efficiency of the entire production process and the stability of the product.
1. Automatic Batching System: The system can automatically complete the proportion of raw materials according to demand, and is equipped with a remote monitoring function to ensure that the batching process is flexible and adjustable, thereby maintaining the nutrient content and quality of the raw materials.
2. Conveying System: Through a belt conveyor or bucket elevator, the material can be accurately transported to the designated area, and a dust prevention device is also equipped to reduce environmental pollution.
3. Crusher: This equipment can quickly crush the material to the required particle size to ensure the smooth progress of subsequent processing.
4. Mixer: The material is fully mixed in this equipment to achieve a uniform effect, preparing for subsequent granulation. (The above equipment can be selected according to the specific material granulation requirements)
5. Double-Roll Extrusion Granulator: This is the core equipment of the production line. It can extrude the processed raw materials into granules at one time without adding any external additives. The produced granules have high hardness and low return rate.
6. Granule Shaping Machine: The extrusion granulator has a fast granulation speed and the granules are oblate. If you have certain requirements for the granules, you can use a polishing machine, which will turn your oblate granules into round spherical granules with a smoother and rounder appearance.
7. Screening Machine: It effectively improves the quality of finished granules. The granulated granules are graded after screening to remove impurities. Particles that do not meet the standards will be sent back to the crushing mixer through the conveying system for re-granulation.
8. Packing Machine and Palletizer: The final granules are packaged and palletized by the weighing packaging system, which is convenient for subsequent storage, transportation, and sales.
By strictly controlling every link in the production process, the quality and stability of granular cat litter can be effectively guaranteed. At the same time, timely adjustment of production processes and formulas will help improve product quality and enhance market competitiveness.

Customization:

Product Customization Services for the Bentonite Granulator Production Line
Brand Name: Gofine
Model Number: GFDL-1
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 1-3Sets/15days
Payment Terms: L/C, Western Union, T/T, MoneyGram
Supply Ability: 15Sets/Month
Usage: One Extrusion Granulation Method
Type: Granulator
Granules Shapes: Spherical Or Oblate Granules
Working Method: Dry Granulation
Control System: PLC Control System
Keywords: fertilizer plant, fertilizer production line, DAP production line

Support and Services:

The Product Technical Support and Services for the Bentonite Granulator Production Line include:
- Installation guidance and support for setting up the production line
- Training sessions for operating and maintaining the equipment
- Troubleshooting assistance for any technical issues that may arise
- Regular maintenance services to ensure optimal performance of the production line
- Access to technical documentation and resources for reference

Packing and Shipping:

Product Packaging:
The Bentonite Granulator Production Line product is carefully packaged in durable and secure containers to ensure safe delivery. Each component of the production line is individually wrapped and protected to prevent any damage during transit.
Shipping:
We offer reliable and efficient shipping services for the Bentonite Granulator Machine product. Our team ensures that the product is dispatched promptly and reaches its destination in a timely manner. We work with trusted shipping partners to guarantee a smooth delivery process for our customers.

FAQ:

Q: What is the brand name of this Bentonite Granulator Production Line?
A: The brand name is Gofine.
Q: What is the model number of this GranulatorProduction Line?
A: The model number is GFDL-1.
Q: Where is this Pelletizer Production Line manufactured?
A: It is manufactured in China.
Q: What certifications does this double roller Production Line have?
A: It is certified with CE.
Q: What are the payment terms accepted for purchasing this Compound Fertilizer Production Line?
A: The accepted payment terms are L/C, Western Union, T/T, and MoneyGram.
