Product Description:

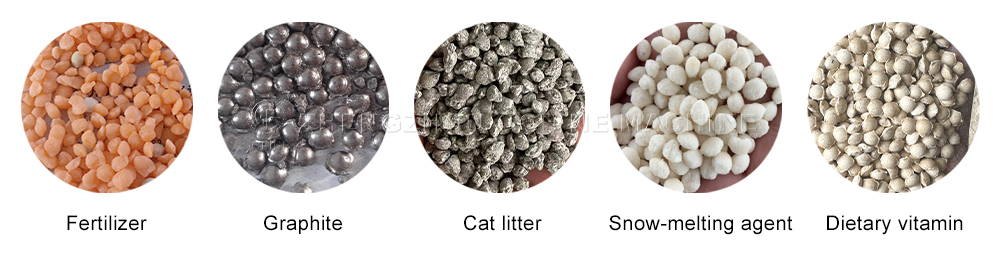

The Water Soluble Fertilizer Processing Line is a complete set of automated dry granulation production equipment. It is mainly used to produce granular materials with a particle size of 2mm-6mm. The materials it can process include compound fertilizer, organic fertilizer, inorganic fertilizer, water-soluble fertilizer, chemical raw materials, cat litter, graphite, pigment, industrial salt, SSP, Dap, and more.
The entire production line is equipped with an automated control system, making operation easy and efficient. This system can help reduce labor costs and improve production efficiency. The production line is designed for large-scale and enterprise production, catering to the diverse production needs of different customers.

Features:

The dry granulation process eliminates the need for drying and cooling after granulation, resulting in energy savings.

Dry granulation produces particles with high density, eliminating the need for additives during the granulation process.

This granulation method does not require a high moisture content of raw materials, making it suitable for various powdery materials.

In wet granulation, raw materials can agglomerate due to excessive moisture. Dry granulation prevents agglomeration, ensuring uniformity and quality of particles.

Technical Parameters:

Applications:

How to produce high-quality granular fertilizer?
To produce high-quality granular fertilizer, the use of a double-roll extrusion granulation production line is an effective solution. The production line contains several key equipment to ensure the efficiency of the entire production process and the stability of the product.

1. Automatic batching system: The system can automatically complete the proportion of raw materials according to demand, and is equipped with a remote monitoring function to ensure that the batching process is flexible and adjustable, thereby maintaining the nutrient content and quality of the raw materials.
2. Conveying system: Through a belt conveyor or bucket elevator, the material can be accurately transported to the designated area, and a dust prevention device is also equipped to reduce environmental pollution.
3. Crusher: This equipment can quickly crush the material to the required particle size to ensure the smooth progress of subsequent processing.
4. Mixer: The material is fully mixed in this equipment to achieve a uniform effect, preparing for subsequent granulation.

   (The above equipment can be selected according to the specific material granulation requirements)

5. Double-roll extrusion granulator: This is the core equipment of the production line. It can extrude the processed raw materials into granules at one time without adding any external additives. The produced granules have high hardness and low return rate.
6. Granule shaping machine: The extrusion granulator has a fast granulation speed and the granules are oblate. If you have certain requirements for the granules, you can use a polishing machine, which will turn your oblate granules into round spherical granules with a smoother and rounder appearance.
7. Screening machine: It effectively improves the quality of finished granules. The granulated granules are graded after screening to remove impurities. Particles that do not meet the standards will be sent back to the crushing mixer through the conveying system for re-granulation.
8. Packing machine and palletizer: The final granules are packaged and palletized by the weighing packaging system, which is convenient for subsequent storage, transportation and sales.

By strictly controlling every link in the production process, the quality and stability of granular fertilizers can be effectively guaranteed. At the same time, timely adjustment of production processes and formulas will help improve product quality and enhance market competitiveness.

Customization:

Product Customization Services for the Water Soluble Fertilizer Processing Line
Brand Name: Gofine
Model Number: GFDL-1
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 1-3Sets/15days
Payment Terms: L/C, Western Union, T/T, MoneyGram
Supply Ability: 15Sets/Month
Control System: PLC Control System
Type: Granulator
Customization: Available According To Customer's Specific Requirements
Working Method: Dry Granulation
Pellet Size: 2-8mm Granules

Support and Services:

The Product Technical Support and Services for the Water Soluble Fertilizer Processing Line include:
- Assistance with installation and commissioning of the production line
- Training for operating and maintaining the equipment
- Troubleshooting guidance and technical support
- Supply of spare parts and components
- Continuous improvement recommendations and updates

Packing and Shipping:

Product Packaging and Shipping:
The Water Soluble Fertilizer Processing Line product is carefully packaged to ensure its safe delivery to customers. The equipment is securely wrapped and protected to prevent any damages during transit. Additionally, each component of the production line is labeled for easy identification.
For shipping, we partner with reliable carriers to ensure prompt and efficient delivery. The product is shipped in durable packaging to safeguard it from any external factors that may affect its quality.

FAQ:

Q: What is the brand name of this Water Soluble Fertilizer Processing Line?
A: The brand name is Gofine.
Q: What is the model number of this compound fertilizer production line?
A: The model number is GFDL-1.
Q: Where is this compound fertilizer production line manufactured?
A: The product is manufactured in China.
Q: What certification does this compound fertilizer production line have?
A: It is CE certified.
Q: What are the accepted payment terms for purchasing this compound fertilizer production line?
A: The accepted payment terms are L/C, Western Union, T/T, and MoneyGram.
